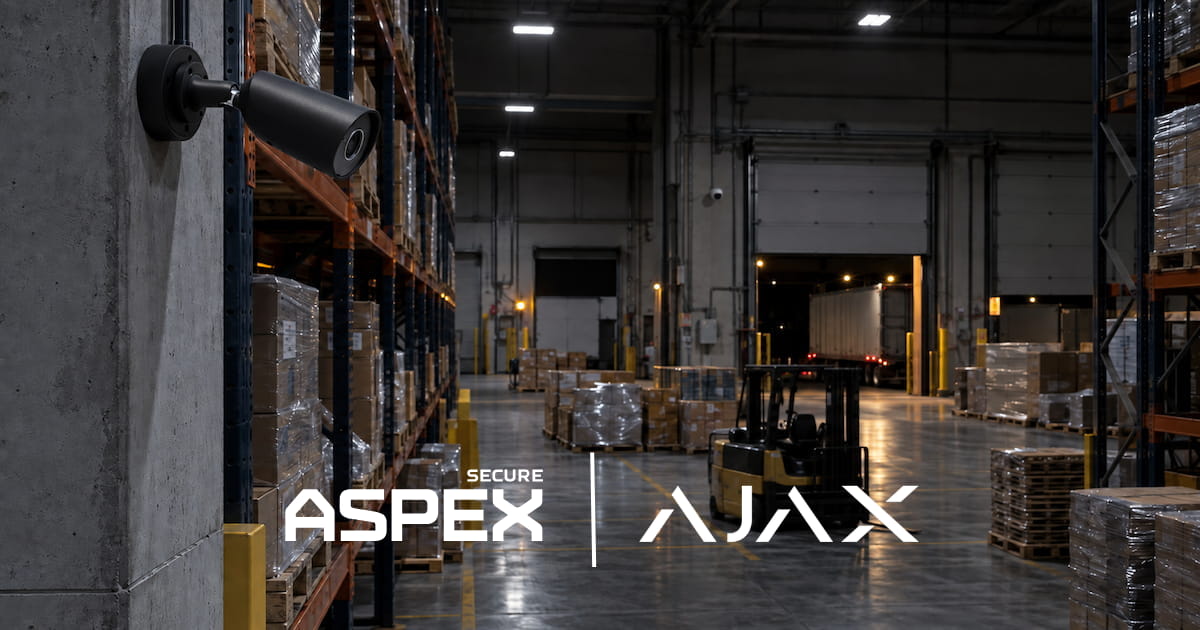

Warehouse security cameras generally belong around entrances, loading docks, shipping and receiving, aisles, restricted storage, and other routes where activity needs review. There is no universal layout: each view must serve a defined task and remain useful with stocked racks, staged pallets, moving forklifts, parked trailers, and changing light.
ASPEX Secure’s placement approach starts with the activity to capture, then evaluates position, obstructions, lighting, detail, detection, and a realistic test. For broader system design, see our warehouse security planning checklist.
Where Should Security Cameras Be Placed in a Warehouse?
Use this table to identify required views. A facility may need several views in one area and none in another; every location must justify its role.
Write the task beside each proposed camera on the plan. “Show a load entering receiving” is more useful than “cover the dock.” It gives the installer and owner a shared acceptance criterion.
How Should Cameras Cover Loading Docks?
Separate the doorway, receiving activity, and the space beside a trailer into distinct visual tasks. One wide camera may show their general relationship without capturing useful detail at each point.
If a trailer hides the transfer route, evaluate a second interior view aimed at that route. Test different normal trailer positions, staged pallets, and doors fully open, partially open, and closed. Confirm that a load remains visible as it crosses the chosen transfer point during both daytime and nighttime loading.
Keep direct sunlight, headlights, and bright fixtures out of the lens. Ajax’s BulletCam manual warns that bright surfaces can reflect infrared illumination and impair nighttime images. Check nearby walls and door surfaces after dark.
For TurretCam, WDR can help balance bright and dark image areas, as described in its image settings documentation. Test the required doorway detail with the selected settings. WDR cannot reveal activity hidden behind a trailer or pallet.
For exterior parking and vehicle routes, use our parking lot security camera planning guide.
How Should Cameras Cover Warehouse Aisles?
Long aisles
Match the lens to the task and actual target distance. Ajax’s focal-length guide explains that a wider view captures more area, while a narrower view can provide more detail in a selected area.
If the far end appears too small, evaluate a tighter lens view or a position closer to that section. Review what falls outside the revised frame. An overview may still be needed to follow movement while a separate view captures detail at a selected point.
Cross-aisles
Rack ends can leave only a short window in which a person is visible. Include the approach to the intersection wherever practical. If someone appears only momentarily between rows, reposition the camera to extend that visible approach or evaluate another view.
Test travel in both directions. Where the task requires following movement between cameras, check the transition for gaps with the racks stocked.
How Do Forklifts, Pallets, and Staged Loads Create Temporary Blind Spots?
A layout that works in an empty warehouse may lose important views during normal operations. Separate two obstruction types:
- Fixed: walls, columns, rack frames, permanent equipment, and structural features.
- Temporary or moving: forklifts, carts, pallet stacks, staged inventory, parked trailers, and seasonal overflow storage.
A forklift may briefly hide someone approaching restricted storage. A pallet stack may obscure a doorway for an entire shift. Those conditions require different placement decisions even when they affect the same camera.
At the proposed position, observe representative traffic and staging. Identify whether the required action disappears, how long the obstruction lasts, and whether another view captures it. Possible corrections include a different viewing direction, an additional view, or an agreed staging location outside the required sight line.
Test the correction with the obstruction present. Simply waiting until the forklift leaves or clearing pallets for the demonstration does not validate coverage during operations.
How Do Racking and Inventory Affect Camera Views?
Racking creates channels of visibility. A camera above a rack row may see across the warehouse while missing activity beside lower shelves. A camera at the aisle end may lose a route behind the nearest rack upright.
Assess each passage using the expected stock height and pallet positions. Where a rack end blocks the task, evaluate a position looking into the passage. If that change sacrifices another required view, assess separate coverage. More resolution cannot reveal an area hidden by inventory.
Also inspect the space immediately around the camera. Ajax’s DomeCam Mini installation guidance warns that large nearby objects can reflect IR light even outside the frame, and advises against placement close to wall corners or lighting fixtures. Higher stock may therefore change both sight lines and nighttime image quality.
Where Should Cameras Cover Entrances, Shipping, and Restricted Areas?
Employee and visitor entrances: Frame the approach and doorway so entry and exit activity is visible. Check door swing, queues, and bright exterior light. A broad image dominated by the surrounding wall provides little value if the person crossing the threshold is obscured.
Shipping, receiving, and packing: Define the handoff to review, such as goods moving from a staging lane to dispatch. Position the view around that transfer point and test it with carts, operators, and normal pallet heights. If item-level detail matters, specify and test that detail separately from general movement.
Restricted or high-value storage: Capture the approach, access point, and relevant activity. Test whether opening the door or placing inventory nearby blocks the view. Camera footage supports review of access activity; physical access control requires its own design.
How Do Mounting Height and Camera Angle Affect Coverage?
A high mounting point may make the target too small or create a steep view that misses required detail. A lower position may put the target behind inventory or moving equipment. Choose height, angle, and target distance together.
If a warehouse ceiling produces an unsuitable view, evaluate a lower fixed position on a wall or column with a clear sight line. Check both the farthest required activity and the area immediately below the camera.
For AI recognition, Ajax’s installation guide recommends approximately 30° downward tilt, avoiding angles beyond 45°, at least two seconds of target visibility, and avoiding partial obstruction.
These are AI-recognition recommendations, not a universal mounting-height rule. These recognition recommendations do not establish whether footage will identify a person.
How Many Security Cameras Does a Warehouse Need?
There is no reliable camera-per-square-foot rule for warehouse security. Count the views the facility needs: entrances, dock doors, aisle routes, restricted areas, and the visual tasks within them.
Then account for blocked sight lines, required detail, and overlap where movement must be followed between views. One overview may serve several general observations, while a single dock may need separate views of its doorway and interior transfer point.
A count is defensible when each camera has a task and each required task has a tested view. Revisit that count when the layout changes; adding cameras without resolving their viewing geometry can leave the same gaps.
How Should Warehouse Camera Placement Be Tested?
Give each camera a written task, for example: “Show a load moving through Dock 2 into receiving.” Specify the detail the reviewer needs, then assess the candidate view before approving its position. Validate the final installed view in playback before handoff.
Use a planned test with site personnel under representative conditions:
- Normal operating layout: Follow the real routes used for the assigned task.
- Full and partial stock: Check the expected range of rack and inventory heights.
- Staged pallets: Include normal temporary storage positions.
- Forklift traffic: Observe representative movement without creating unsafe test situations.
- Parked trailers: Include the positions that alter dock and exterior views.
- Door positions: Test closed, partially open, and fully open states where used.
- Daylight: Check glare, backlighting, and direct sun affecting the task.
- Nighttime: Use normal lighting and check IR reflections and required detail.
- Required AI events: Confirm that the configured detection reports the intended activity.
- Playback: Review the recorded action, its continuity, and the agreed detail.
Record failures by camera, condition, and corrective action. Retest the changed view and document unresolved limitations. Passing a controlled test establishes performance in those conditions, not guaranteed detection in every future event.
What Happens When the Warehouse Layout Changes?
Review affected views after new racking, changed rack height, relocated equipment, new staging zones, altered dock operations, lighting changes, or expansion. Identify which written camera tasks those changes could affect.
Repeat the relevant placement and playback tests, then update the plan and any recorded limitations. A small change near the lens can matter as much as a major change elsewhere. Seasonal inventory increases deserve review before the extra stock becomes the normal obstruction.
What About Recording and Storage?
Placement determines what a camera can see; recording design determines how long footage remains available. Adding recorded cameras or increasing recorded data rates changes storage requirements. Ajax’s Video Storage Calculator estimates capacity and recording time from streaming settings.
For retention planning, see How Long Do Security Cameras Keep Footage?. Recheck recording requirements when adding or changing warehouse views.
